New ZNA Rich 7 EV Battery-Electric Pickup Truck
Stock GDS-0011 New Check Availability
Key Specifications
| Fuel Type | Electric |
|---|
Overview
New ZNA Rich 7 EV pickup with a 77.28 kWh CATL lithium iron phosphate battery, 430-451 km CLTC range, automatic transmission and available AWD or RWD configurations.
Detailed Description

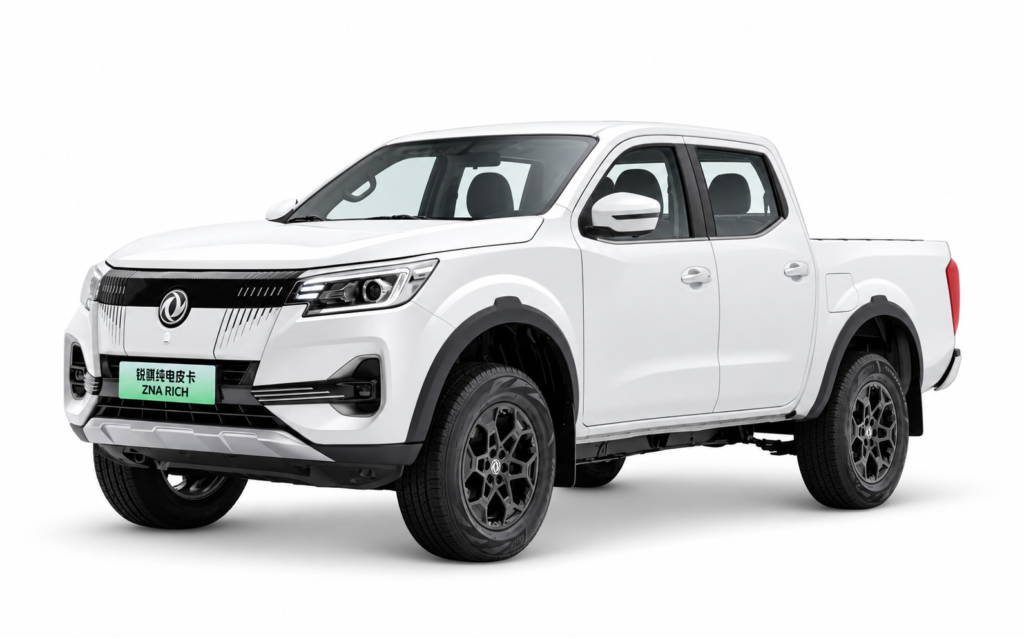

The ZNA Rich 7 EV is a five-seat battery-electric double-cab pickup manufactured by Zhengzhou Nissan. The supplied specification sheet covers two available configurations: the AWD model ZN1031UCPBEV and the RWD model ZN1031U5PBEV. Both use a 77.28 kWh CATL lithium iron phosphate battery, an automatic transmission and a standard-size cargo bed.
Product Highlights
- Battery-electric pickup with zero tailpipe emissions
- 77.28 kWh CATL lithium iron phosphate battery
- CLTC range: 430 km (AWD) or 451 km (RWD)
- 180 kW rear permanent-magnet synchronous motor on both configurations
- AWD version adds a 180 kW front motor
- 0-100 km/h acceleration in 8.6 seconds
- DC fast charging: 30-80% in approximately 0.5 hour
- AC charging: 20-100% in approximately 9.5 hours
- Five-seat double-cab body with 1510 x 1562 x 475 mm cargo bed
Technical Specifications
| Specification | AWD / 4WD Configuration | RWD / 2WD Configuration |
|---|---|---|
| Vehicle model code | ZN1031UCPBEV | ZN1031U5PBEV |
| Internal model ID | A27A | A28A |
| Drive type | AWD | RWD |
| Overall dimensions (L x W x H) | 5287 x 1880 x 1860 mm | 5287 x 1880 x 1860 mm; 1875 mm with optional roof rack |
| Cargo bed (L x W x H) | 1510 x 1562 x 475 mm | 1510 x 1562 x 475 mm |
| Wheelbase | 3150 mm | 3150 mm |
| Gross vehicle weight | 3495 kg | 3450 kg |
| Curb weight | 2230 kg | 2130 kg |
| Rated payload | 940 kg | 995 kg |
| Seating capacity | 5 | 5 |
| Maximum gradeability | 40% | 40% |
| Minimum turning radius | 6.45 m | 6.45 m |
| 0-100 km/h | 8.6 s | 8.6 s |
| CLTC driving range | 430 km | 451 km |
| Maximum speed | 140 km/h | 140 km/h |
| Battery chemistry | Lithium iron phosphate (LFP) | Lithium iron phosphate (LFP) |
| Battery supplier | CATL | CATL |
| Battery capacity | 77.28 kWh | 77.28 kWh |
| Cell capacity | 200 Ah | 200 Ah |
| Battery thermal management | Intelligent liquid cooling and heating | Intelligent liquid cooling and heating |
| AC / DC charging power | 6.6 kW / 70 kW | 6.6 kW / 70 kW |
| DC fast charge | 30-80% in approx. 0.5 h | 30-80% in approx. 0.5 h |
| AC charge | 20-100% in approx. 9.5 h | 20-100% in approx. 9.5 h |
| Front motor | PMSM, 180 kW, 309 N.m | Not fitted |
| Rear motor | PMSM, 180 kW, 420 N.m | PMSM, 180 kW, 420 N.m |
| Transmission | Automatic | Automatic |
| Minimum ground clearance | 210 mm | 210 mm |
| Tires | 255/65 R18 | 255/65 R18 |
| Front suspension | Double-wishbone independent | Double-wishbone independent |
| Rear suspension | Leaf spring | Leaf spring |
| Steering | EPS | EPS |
| V2G | >=20 kW | >=20 kW |
| V2L | >=20 kW | >=20 kW |
Configuration Disclaimer
The supplied photographs do not establish whether the photographed vehicle is the AWD or RWD configuration. Specifications, equipment and optional features vary by configuration, market and production batch. Confirm the exact vehicle model code, drivetrain, homologation, VIN and final equipment list before purchase. The source workbook labels battery energy density as “153 kWh/kg”; this unit appears inconsistent and requires supplier confirmation, so it is not presented as a verified website specification.
Technical Specifications
| Fuel Type | Electric |
|---|---|
| Seating Capacity | 5 |
| Transmission | Automatic |
