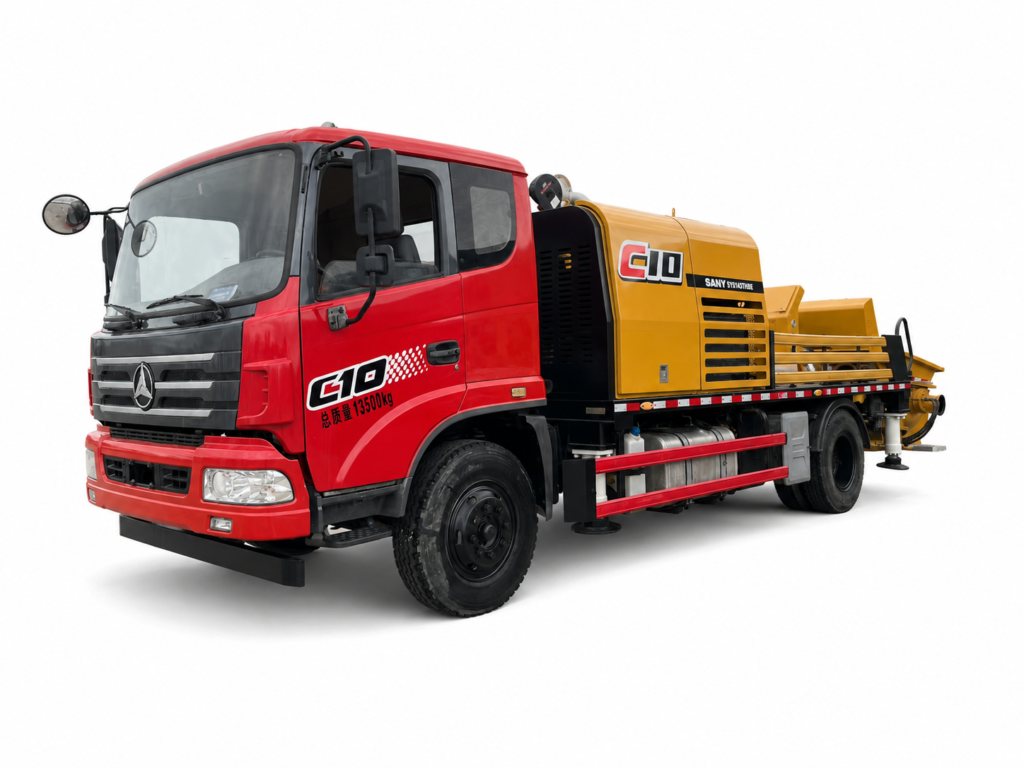

Used 2021 SANY SY5143THBE-C10 Truck-Mounted Concrete Pump
Stock GDS-0007 Used Check Availability
Key Specifications
| Pumping Capacity | 100 m³/h |
|---|
Overview
Used 2021 SANY SY5143THBE-C10 100/23 truck-mounted concrete pump on a SANY chassis with a Bosch Rexroth hydraulic pump. Output 100 m³/h at 23 MPa. Current equipment location is available upon request.
Detailed Description
This used 2021 SANY SY5143THBE-C10 is a compact truck-mounted concrete pump, commonly described as a SANY 100/23 line pump. It combines a two-axle SANY truck chassis with a dedicated concrete pumping system and a rear hopper. Current equipment location is available upon request.
The machine is configured for a maximum theoretical concrete output of 100 m³/h and a maximum theoretical output pressure of 23 MPa. It is equipped with a high-spec Bosch Rexroth main hydraulic pump. The equipment nameplate identifies the upper-structure engine as D09S3-272E0, rated at 200 kW at 2,200 rpm.
The package includes exterior views, rear hopper and pumping-system details, the machine nameplate, and a photo of the operating-information display. Operating figures shown on the display are listed below for reference and should be reconfirmed at the time of sale because the machine may remain in use.
Contact Global Drive Solution for the latest availability, price, inspection details, shipping options and additional videos.
Product Highlights
- 2021 model, manufactured in March 2021
- SANY chassis and compact two-axle configuration
- 100 m³/h maximum theoretical concrete output
- 23 MPa maximum theoretical output pressure
- High-spec Bosch Rexroth main hydraulic pump
- Dedicated upper-structure engine, model D09S3-272E0
- 200 kW rated upper-engine power at 2,200 rpm
- Current equipment location is available upon request.
- Suitable for concrete pumping projects where a compact truck-mounted configuration is preferred
- Actual machine photos, nameplate and operating-information display are included
Technical Specifications
| Condition | Used |
| Brand | SANY |
| Year | 2021 |
| Production Month | March 2021 |
| Model | SY5143THBE-C10 |
| Product Type | Truck-Mounted Concrete Pump / Concrete Line Pump |
| Common Configuration | 100/23 |
| Chassis | SANY chassis |
| Axle Configuration | 2 axles |
| Main Hydraulic Pump | Bosch Rexroth |
| Max. Theoretical Output | 100 m³/h |
| Max. Theoretical Output Pressure | 23 MPa |
| Upper-Structure Engine Model | D09S3-272E0 |
| Upper-Structure Engine Rated Power | 200 kW at 2,200 rpm |
| Overall Dimensions (L x W x H) | 9,240 x 2,500 x 3,040 mm |
| Complete Vehicle Kerb Mass | 13,370 kg |
| Complete Vehicle Gross Mass | 13,500 kg |
| Manufacturer | SANY Heavy Industry Co., Ltd. |
| Country of Manufacture | China |
| Current Location | Current equipment location is available upon request. |
Operating Data Shown in the Supplied Display Photo
| Total Pumping Cycles | 673,283 |
| Total Pumped Volume | 38,043 m³ |
| Power-On Time | 2,072.7 h |
| Standby Time | 1,337.4 h |
| Total Fuel Consumption | 18,641.1 L |
The figures above were read from the supplied operating-information display photo. They are not an independent inspection report and should be reconfirmed before publication or sale.
Contact Global Drive Solution for price, current availability and inspection details.
Technical Specifications
| Chassis Brand | SANY |
|---|---|
| Engine | D09S3-272E0, 200 kW at 2,200 rpm |
| Pumping Capacity | 100 m³/h |
Inspection & Refurbishment
Inspection notes
Used equipment. Visible signs of previous use are shown in the actual photographs. Detailed condition and availability should be confirmed before purchase.
